Description
More convenient maintenance
- Strong versatility both for indoor screen & floor screen

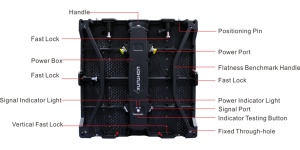

- Upgrade the design for module disassembly (better than LR-Pro)

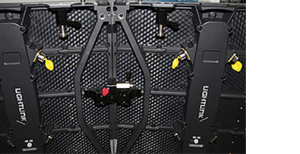

- Don’t need open the back cover and support arc installation by arc fast lock
- Replace the module directly
| Parameters | Indoor |
|---|---|
| Pixel Pitch(mm) | 3.9 |
| LED type | SMD 2121 |
| Pixel per Module（Pixels/㎡） | 65,536 |
| Module Size（mm） | 500*125 |
| Brightness（cd/㎡） | 1000 |
| Viewing Angle（H/V） | H:140/V:100 |
| Cabinet size（mm*mm） | 500*500*65 |
| Cabinet Weight（kg） | ≈7.2kg |
| Display Refresh Rate（Hz） | ≥1920/3840 |
| Input Power Frequency（Hz） | 50/60 |
| Input Voltage(Nomina)（V） | AC110,220,110-240 |
| Input Power(Max)（W/㎡） | ≈600 |
| Input Power(Aveerage)（W/㎡） | ≈300 |
| Lifepan（H) | ≥50,000 |
Maximum angle:10°per side
Curved lock
Curved screen
Indoor
LR-Plus can meet your different demands

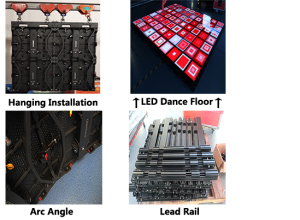

indoor/outdoor/ LED dance floor/LED curved screen
Starting from the 21st Century, LED screen gradually became a necessary equipment of stagedesign.Nowadays it is widely used in different ways and appeared in different positions. Not only used for background decoration but also used as the stage floor.
As is known to us all that constant innovation is the key to stay competitive in this industry. With an industry-leading R&D team, we create LR-Plus which used by high standard and perfect design.
